Fine-powdered Activated Carbon KURARAY COAL™ PGW grade
Features
- This product features precisely controlled pore structure and advanced particle size management, tailored to the target substances for adsorption.
- Its sharp particle size distribution and minimal fine particles help optimize binder usage when producing activated carbon filters.
- With high product strength and low dust generation, it supports efficient and clean filter manufacturing.
(We also offer grades with reduced fine powder upon request.) - Some grades are certified by NSF and WQA.
Grade Lineup
- PGW: General grade
- PGWH / PGWHH: Specialized for free residual chlorine removal
- PGWB / PGWT: Specialized for VOCs removal
| Removal Target | PGW | PGWH | PGWT |
|---|---|---|---|
| Chlorine | ★★★☆ | ★★★★ | ★★☆☆ |
| Chloroform | ★★★☆ | ★★☆☆ | ★★★★ |
| Chloramine | ★☆☆☆ | ★☆☆☆ | ★☆☆☆ |
/
Main Applications
- Removal of residual free chlorine and VOCs in tap water for home water filters, Catalyst

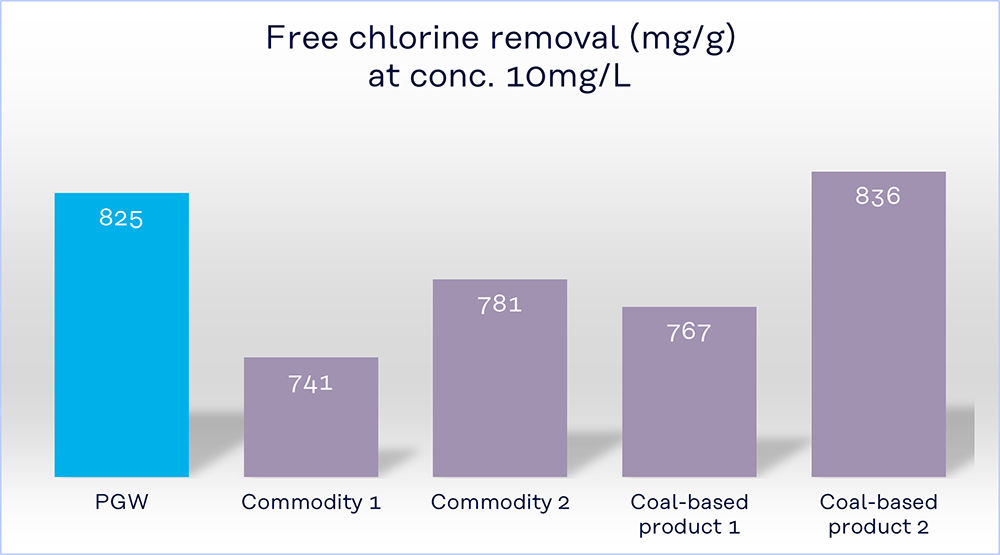

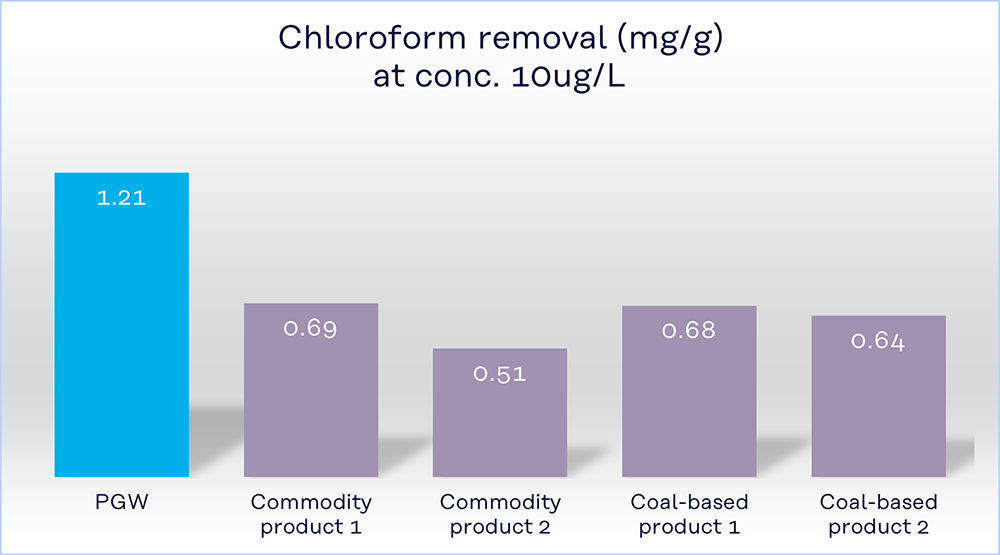

Residual Free Chlorine, Chloroform Removal Performance (PGW grade vs. Standard Activated Carbon)
- The PGW grade not only removes residual free chlorine but also effectively adsorbs chloroform, which is generally considered difficult to remove with general activated carbon.
*Test condition
160 rpm/min × 2 hr
Concentration: Free chlorine 100 mg/L, Chloroform 100 μg/L
Water temperature @ 25 degree C

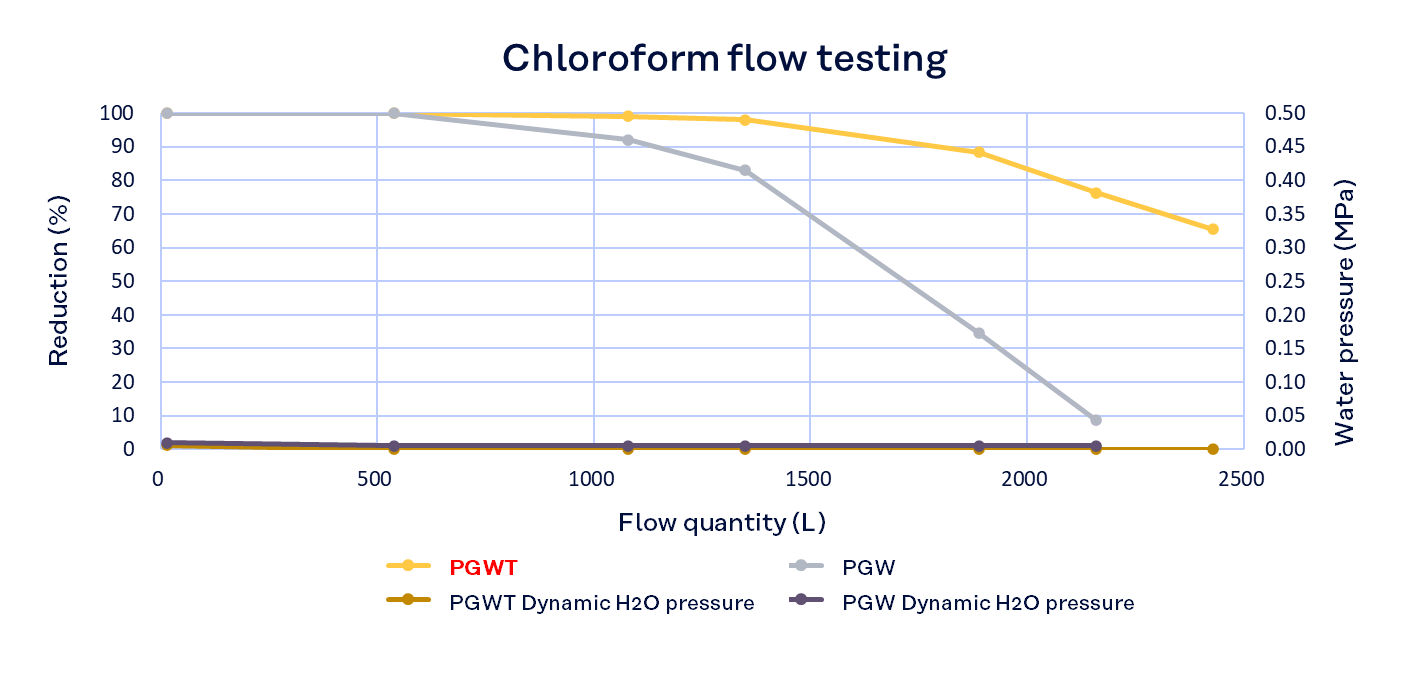

Chloroform Removal Performance (PGW grade vs. PGWT grade)
- The PGWT grade features pore structure optimized for chloroform’s molecular size, delivering approximately 1.5 times higher chloroform removal performance compared to the PGW grade.
*Test condition
Filter size:
44.6 φ × 23.0 φ × 155 mmH
Chloroform concentration:
0.250 ± 0.050 mg/L
Filter volume:
177.7 cc (SV = 506/hr)
Flow rate:
1.5 L/min (water temperature @ 20-21 degree C)
